Sprint 1 - A Working UI Prototype
Sprint Goals
Develop a prototype that simulates the key functionality of the system, then test and refine it so that it can serve as the model for the next phase of development in Sprint 2.
Figma is used to develop the prototype.
Initial Database Design

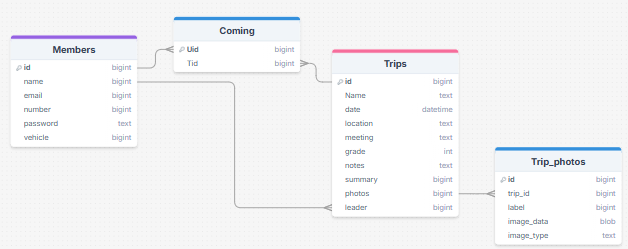

this is the initiail design for the databse,
The database consists of five interconnected tables:
- Members: stores user information.
- Trips: stores data about organized trips.
- Coming: a join table indicating which members are attending which trips.
- Trip_photos: stores photos associated with trips.
Required Data Input
The system will require input from Admins:
Members Input: Admins add new user with: name, email, phone number (number), password (hashed), and vehicle ownership.
Trip Creation: Admins or leaders will create new trips by inputting: trip name, date/time, location, meeting point, grade (difficulty), notes, summary, photos, and leader ID.
Trip Attendance: Users will be able to join trips, which adds a record to the Coming table linking their id to the trip id.
Photo Upload: Admins can upload images associated with a trip, storing them in Trip_photos with a label and image data.
Required Data Output
The system will display several types of information:
Trip Listings: Upcoming and past trips with date, location, summary, and leader info.
Trip Details Page: Full trip information including notes, meeting point, and difficulty List of attending members. Photo gallery.
Admin page: Dashboard for managing trips and viewing attendance. Access to add/edit/delete trips and members and upload photos.
Required Data Processing
To get the above outputs, the system must process data through:
Joins: Coming table will be joined with Members and Trips to show who is attending what.
Filtering & Sorting: Trips will be filtered by upcoming dates and sorted chronologically.
Image Handling: Images stored in BLOB format will be converted and rendered on the frontend using image_type for correct MIME type.
Authentication: User login will verify password (hashed) and email to allow access to join or admin features.
Count of attendees per trip.
Validation: Prevent duplicate RSVPs, invalid data, and ensure required fields are filled.
UI ‘Flow’
The first stage of prototyping was to explore how the UI might ‘flow’ between states, based on the required functionality.
This Figma demo shows the initial design for the UI ‘flow’:
Testing
I gave this demo to some potential end-users to see if they had any comments / feedback. These issues were raised:
theres no way for me to log out, and theres no way to tell wether im signed in or not apart from that all looks good.
Changes / Improvements
added a username and logout button in top right so user can tell when logged in.
Initial UI Prototype
The next stage of prototyping was to develop the layout for each screen of the UI.
This Figma demo shows the initial layout design for the UI:
Testing
wanted to refine all the components as currently theyre just boxes. and give the site a better layout in gernal
Changes / Improvements
refined most components and added much better ui elements across the page.
- rounded button corners
- added shading and text where needed
- added search bars to the admin fields
- photo formatting
- close and save buttons
